GC15m Class 2

  • Extended Battery & Range Capacity: Powered by CATL LFP battery packs with a standard 528 kWh capacity and an optional 704 kWh configuration for demanding long-distance intercity operations.

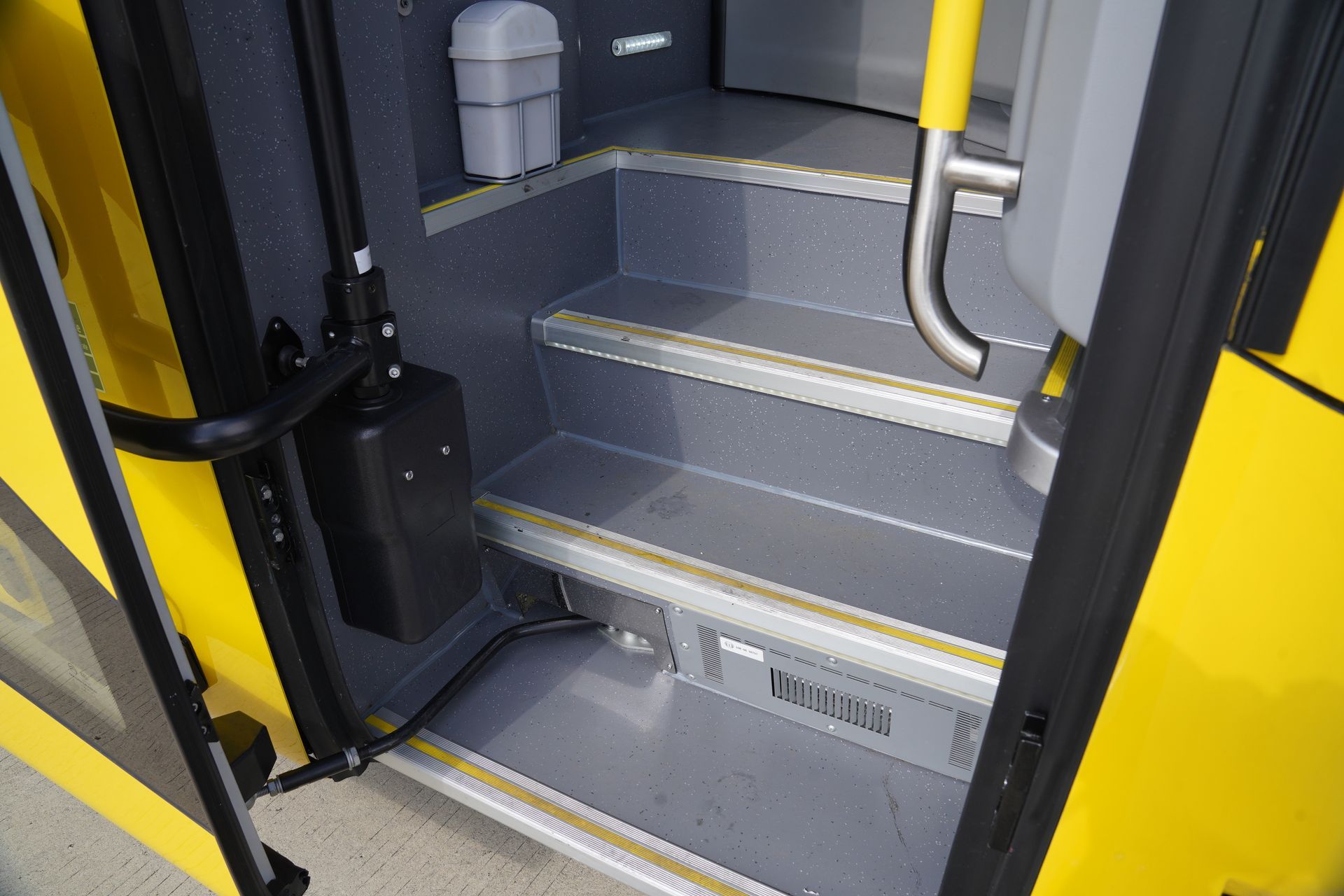

  • High Passenger Occupancy & Accessibility: 15-meter Class II layout accommodating up to 60+ passengers (59+1 with 1 wheelchair position or 59+1+2 with foldable seats), equipped with wide outward-swing doors and ECAS kneeling function.
  • High-Performance Powertrain: Driven by a Permanent Magnet Synchronous Motor (PMSM) delivering an impressive peak output of 500 kW and 4800 N·m maximum torque, achieving top speeds of up to 100 km/h.
  • Robust Chassis & Steering System: Monocoque stainless steel frame structure with ZF independent front axle, ZF 13T rigid rear axle, and a steering tag axle for maximum stability and maneuverability.
  • Passenger & Driver Comfort: Equipped with Thermo King electric A/C with integrated heat pump, USB chargers at every seat, ACTIA CAN-bus system, DAB radio, and full pneumatic disc brakes with WABCO EBS/ABS/ASR safety controls.
Length Width Height Wheelbase Weight(kg) Occupancy Battery Capacity Top Speed Range
14895 mm 2550 mm 3830 mm 5900+3460 mm 18000 kg 59+1 (1 Wheelchair) LFP 528 kWh (Opt. 704 kWh) 100 km/h 450–600 km
